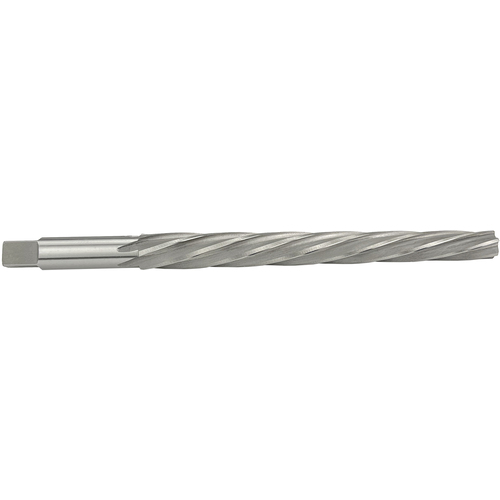

| Tool Type | Taper Pin Reamer | Flute Type | Helical |
| Size | #6 | Shank Type | Round |
| Cutting Diameter Minimum (DCN) | 0.2773″ | Large End Diameter | 0.354″ |
| Cutting Diameter Maximum (DCX) | 0.354″ | Small End Diameter | 0.2773″ |
| Length Chip Flute (LCF) | 3-11/16″ | Cutting Edge Material | HSS |
| Overall Length (OAL) | 5-7/16″ | Measurement Type | Wire Gauge |
Product Features
| Remarks | •Taper Pin Reamers •High Speed Steel •For reaming tapered holes that receive standard taper pins •Reamers have a taper of 1/4″ per foot • The point of each reamer will enter hole reamed by next smaller size •HELICAL FLUTE - Built for machine reaming of pin holes on a production basis. Helical construction prevents chips from packing in flutes and reduces breakage. Free cutting action at high speeds produces a fine finish. | Country of Origin | IN |
Shipping Info
Package Length
5.30000
Package Width
.50000
Package Height
.50000
Package Weight
.100
