5/8X2-1/2 3F CC AL F

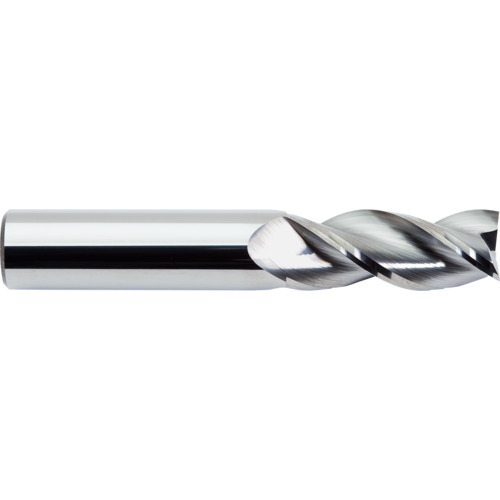

SQ End Mill; 5/8″ Dia. × 2-1/2″ LOC × 5/8″ Shank Dia. × 5″ OAL ; 3 FL ; Carbide ; Uncoated ; Series 138
Additional Canadian Tariff of 25 %
| Cutting Diameter (DC) | 5/8″ | Usable Length (LU) | 2-1/2″ |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Depth of Cut Maximum (APMX) | 2-1/2″ | Corner Radius (RE) | 0″ |
| Overall Length (OAL) | 5″ | Tool Type | Single-End|High Performance |
| Cutting Edge Material | Carbide | Length Group | Aluminum Cutting |
| Coating | Uncoated | Decimal Equivalent | 0.625″ |
| Flute Count (NOF) | 3 | Series/List # | 138 |
Product Features
| Family Description | Alternate Manufacture # 13864 | Country of Origin | USA |
| Remarks | •3 Flute, Aluminum Extended Length Finisher, Center Cutting •Coatings: Ford Lube: Hi-Lubricity- providing minimal edge build-up •Very high feed rates & excellent surface finish. •3 Flute geometry promotes smooth cutting action. |
Shipping Info
Additional Fees and Notes
0
Package Length
5.00000
Package Width
.63000
Package Weight
0.639
